HVLP Spray Guns Kit Auto Paint Fresco Repair Primer 1.0-2.5mm Nozzle Air Sprayer 1.3mm, 1.8mm Nozzle

Features:

- Efficient Air Spray - With high paint transfer efficiency, it applies smooth finish, saving material, perfect for spraying base-coats, clear-coats and other light to medium viscosity coatings, etc

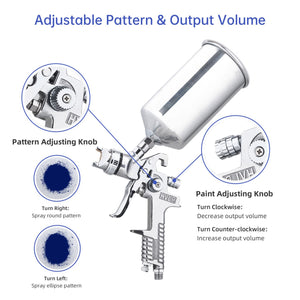

- Adjustable Pattern & Output Volume - With pattern adjusting knob to spray pattern round when turning right and ellipse when turning left; Features a paint adjusting knob for controlling fluid output volume, turning clockwise to decrease and turning counter-clockwise to increase, easy to adjust according to your different painting needs

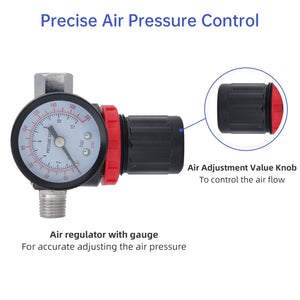

- Precise Air Pressure Control - Features an air regulator with gauge for accurate adjusting the air pressure, just adjust the air adjustment value knob to control the air value, providing uniform spraying & particle size for different types of coatings and ensuring safe use
- Durability - Stainless steel needle & aluminum fluid cup for corrosion resistance, and copper nozzle for wear resistance, providing a long time use even spraying with different paint
- Easy to Operate & Clean - Lightweight and ergonomic handle design for easy operation, both beginners and professionals can use; Comes with a cleaning brush and spanner wrench, allows you to remove the nozzle for easy cleaning; 1-year warranty for quality insurance

Specifications:

1.4mm Nozzle:

- Overall Dimension(LxWxH): 14 3/16" x 5 1/2" x 3 15/16" (36 x 14 x 10 cm)
- Air Inlet: 1/4" (0.635 cm)
- Pattern Width: 5 7/8" to 7 1/16" (15 to 18 cm)
- Working Air Pressure: 29 to 51 PSI (2.0 to 3.5 Bar)
- Max. Pressure of Air: 90 PSI (6.2 Bar)
- Noise Level: 85.5 dB(A)
- Avg. Air Consumption: 4.2 to 7.1 CFM (150 to 180 l/min)

Package Contents:

- 1x HVLP Air Spray Gun
- 1x True Micrometer Air Regulator with Gauge
- 2x Cup Filters
- 1x Aluminum Fluid Cup with Lid

2.5 mm Nozzle:

- Overall Dimension(LxWxH): 6 5/16" x 5 1/8" x 9 1/16" (16 x 13 x 23 cm)
- Connector: 1/4"
- Pattern Width: 5 7/8" to 7 1/16" (15 to 18 cm)
- Regulator Adjustable Range: 0 to 180 PSI (1 to 12 bar)
- Working Pressure: 29 to 51 PSI (2 to 3.5 bar)
- Maximum Air Pressure: 90 PSI (6.2 bar)
- Avg. Air Consumption: 4.2 to 7.1 CFM (150 to 180 L/Min)

Package Contents:

- 1x HVLP Air Spray Gun
- 1x Air Regulator with Gauge
- 2x Cup Filters

1.0mm, 1.4mm Nozzle

1.4mm HVLP spray gun:
- Overall Dimension(LxWxH): 5 7/8" x 4 5/16" x 11 13/16" (15 x 11 x 30 cm)
- Operating Pressure: 43 PSI (2.3 Bar)
- Air Consumption: 5 to 10 CFM
- Compressor Required: 1 to 3 HP
- Air Inlet Diameter: 1/4" (0.635 cm)

1.0mm HVLP spray gun:
- Overall Dimension(LxWxH): 3 15/16" x 2 9/16" x 9 1/16" (10 x 6.5 x 23 cm)
- Operating Pressure: 30 PSI (2.1 Bar)
- Air Consumption: 1 to 5 CFM
- Compressor Required: 1 to 3 HP

Package Contents:

- 1x 1.4mm HVLP Spray Gun
- 1x 1.0mm HVLP Spray Gun
- 1x Air Regulator with Gauge
- 1x In-line Air Drier (Water/Oil Separator)

Notice:- Tool Case is NOT included.

1.3mm, 1.8mm Nozzle

- Overall Dimension(LxWxH): 14 3/16" x 5 1/2" x 3 15/16" (36 x 14 x 10 cm)
- Air Inlet: 1/4"
- Type of Feed: Gravity
- Pattern Width: 7 1/16" to 8 11/16" (18 to 22 cm)
- Working Air Pressure: 30 to 43 PSI
- Max. Pressure of Air: 43 PSI
- Avg. Air Consumption: 5 to 10 CFM

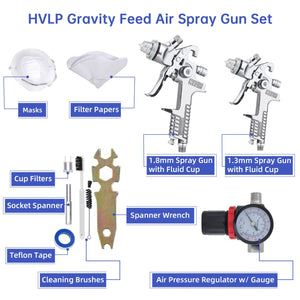

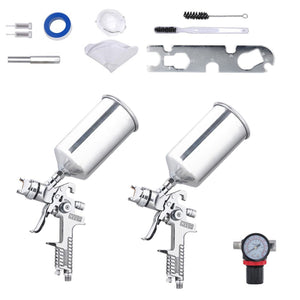

Package Contents:

- 1x 1.3mm&1.8mm Spray Gun with Fluid Cup
- 1x Air Pressure Regulator w/ Gauge
- 5x Filter Papers
- 2x Cup Filters

1.0mm, 1.4mm, 1.8mm Nozzle

- Full Size Spray Guns Overall Dimension(LxWxH): 14 3/16" x 5 1/2" x 3 15/16" (36 x 14 x 10 cm)
- Mini Size Spray Guns Overall Dimension(LxWxH): 9 7/16" x 3 15/16" x 2 5/8" (24 x 10 x 6.7 cm)
- Air Inlet: 1/4"
- Working Air Pressure(Full Size Spray Guns): 43 psi
- Working Air Pressure(Mini Size Spray Gun): 30 psi
- Cup Capacity: 1000 ml, 100 ml
- Average Air Consumption(Full Size Spray Guns): 5 to 10 CFM
- Average Air Consumption(Mini Size Spray Gun): 1 to 5 CFM

Package Contents:

- 1x 1.0mm&1.4mm&1.8mm HVLP Spray Gun
- 2x 1000ml Aluminum Cups w/ Lids
- 1x 100ml Aluminum Cup w/ Lid
- 1x Air Pressure Regulator w/ Gauge
- 1x Aluminum Carrying Box

Notice:
- Please always keep your airbrush clean. Never leave paint in your airbrush as dried paint can clog a nozzle.
