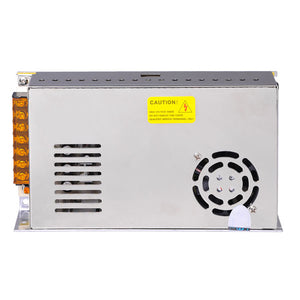

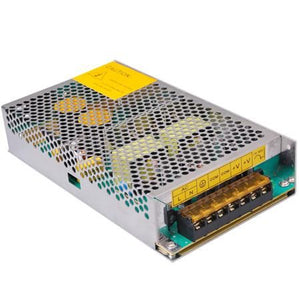

250w 12v Regulated DC Switching Power Supply

Brand New 12V 20.8A 250W Universal Regulated DC Switching Power Supply
This premium quality regulated switching power supply offers a convenient way to power your devices with stability and flexibility. Besides, it mostly uses in driving all of your LED requirements. It can power up different long flexible LED SMD strips.

Features:

• Metal Shell
• Universal AC Input / Full Range
• Input Voltage: AC100 - 240V, 50/60Hz
• Output: DC 12V, 20.8A
• Over load protection
• Over charge protection
• Short circuit protection
• 100% full load burn-in test
• Cooling by free air convection

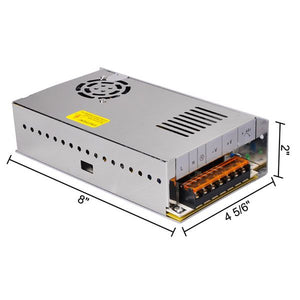

• Overall Dimensions: 7-4/5"L x 4-2/5"W x 2"H
• Weight: 1.4 lbs
• CE Listed

Connection:

• L, N: AC power input
• GND: DC power output "-"
• V: DC power output "+"
• +V / ADJ: adjust the output voltage
• Working Temperature: 0~40C
• Storage Temperature: -20~60C
• Ambient Humidity: 0~95% Non-Condensation

Support max length of LED strips:

SMD3528 60LEDs/m: 50meters
SMD3528 120LEDs/m:25meters
SMD5050 30LEDs/m: 40meters
SMD5050 60LEDs/m: 20meters
