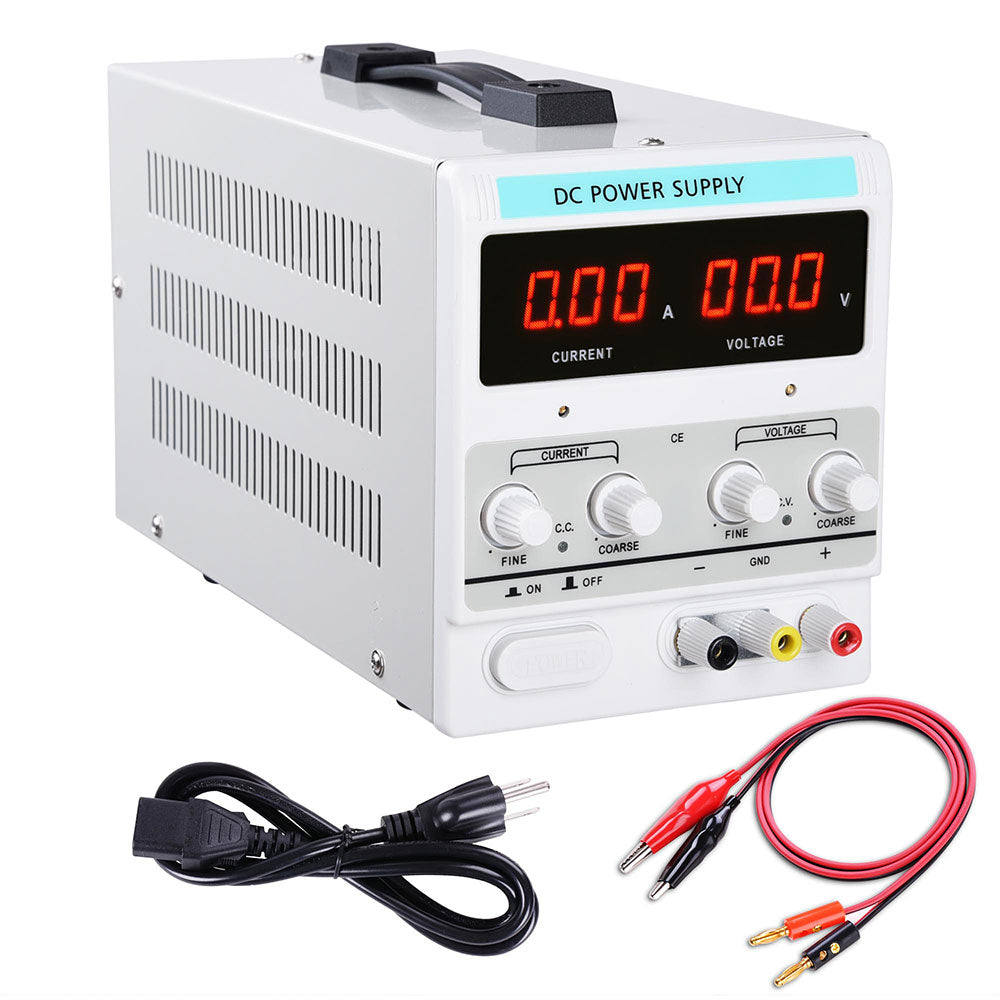

30v 10A DC Converter Lab Precision Variable Power Supply

This LED digital display power supply adopts advanced PWM and MOS control technology design, making it high precision, high efficiency, more energy-efficient and eco-friendly. It also features multiple protections functions, such as over voltage, over temperature and short-circuits protection which can protect the testing load and power supply from damage. It can be used both as constant voltage and constant current dc power supply. Its constant voltage and constant current operation mode can be automatic converted. It is widely used in LED testing and aging, motor manufacturing, PCB manufacturing, battery, dc fan, etc. It is the first choice for workshop, laboratory and production line. Features:
Durable steel case
Constant voltage and constant current operation mode (C.C and C.V. automatic conversion)
Multiple protections: over voltage (OVP), open circuit (OCP),over temperature (OTP)
Safe circuit design, high quality key components adopted, the power supply can be used in 24 hours with full load
Intelligent temperature control fan adjusts the speed according to the load situation, effectively reduce noise and prolong the life of fan
Specifications:
Input voltage:220V±10% 50Hz or 110V±10% 60Hz or 115V/230V±10%
Output voltage: DC 0-30V Continuous adjustable
Output current: DC 0-10A Continuous adjustable
Display resolution: voltage: 0.1V , current 0.1A.
Display precision: ±1% ±1digit
Voltage stabilization: «0.05% +1mV
Current stabilization: «0.1% +10mA
Load stabilization: CV«0.1% +1mV / CC«0.1% +10mA
Ripples and noises:CV«10mV (RMS) / CC«20mA (RMS)
Cooling way:Intelligent temperature control fan. if the temperature is higher than 40 °F, the fan is started, if less than 95¨H, the fan will stop which can reduce noise
Working conditions: -10°C ~ 40 °C (14℉~104℉) Relative humidity :< 80%
Storage conditions: -20°C ~ 80 °C (-4℉~176℉) Relative humidity :< 80%
Dimension: 13.8 x 6.1 x 5 (inch)
Package Includes:
1 x DC power supply
1x Power Cord

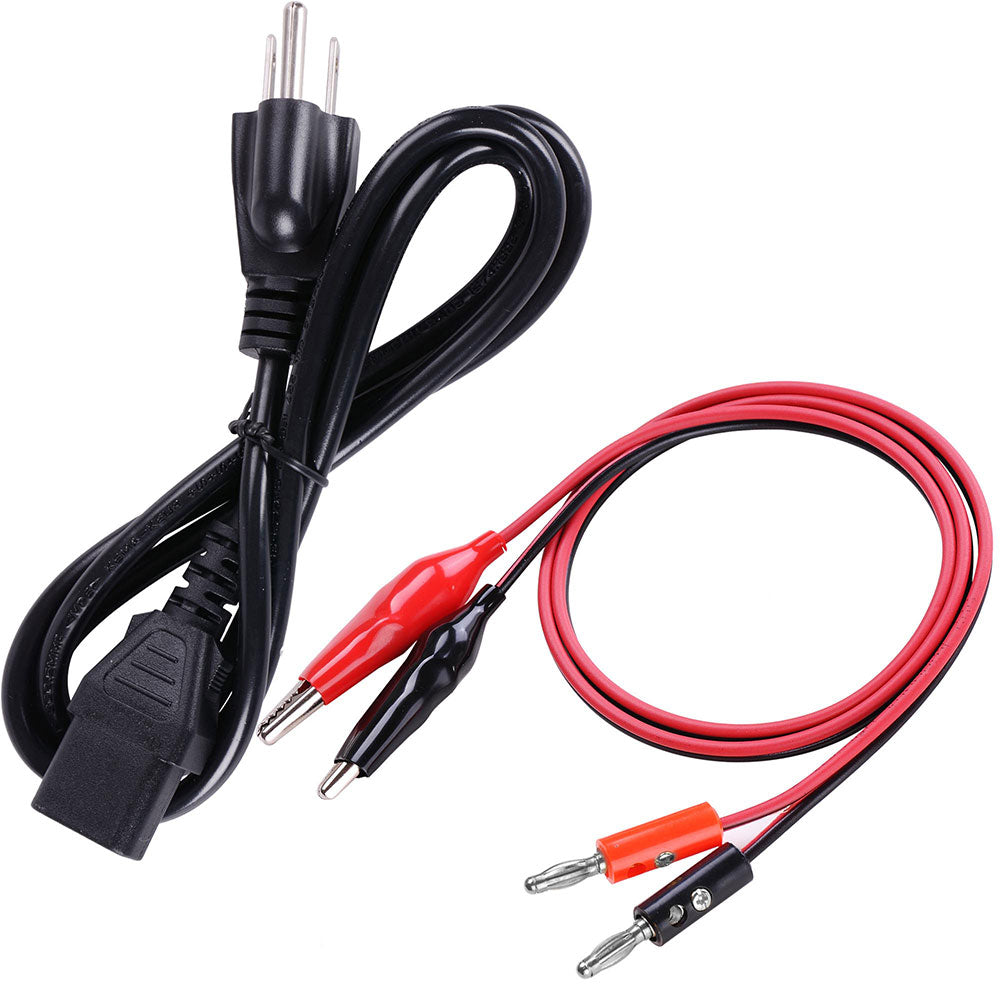

1x Clip cable
1x User Manual
