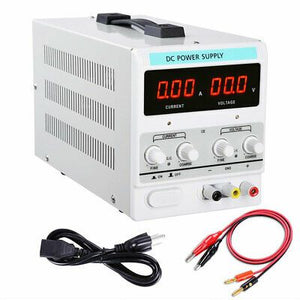

30V 5A DC Power Supply Adjustable Dual Digital Variable Precision Lab Grade 110V

Features:

• Constant voltage and constant current automatic conversion
• Perfect protection function: over voltage protection (OVP), open circuit protection (OCP), over temperature protection (OTP)
• PWM switching voltage stabilizer, MOS linear adjustment mode
• Use for product testing aging, battery industry, inverter, LED manufacturing industry, and other all need dc regulated power supply
• Dual LED Three Digital Tube Display
• Current mA / A Conversion Display
• High Stabilized Output Voltage
• Intelligent temperature control fan
• Compact Design
• All Metal Construction

Specifications:

• Input voltage: 110V,±10% 60Hz
• Output voltage: DC 0-30V Continuous adjustable
• Output current: DC 0-5A Continuous adjustable
• Display resolution: voltage: 0.1V, current: 0.1A
• Display precision: ±1% ±1digit
• Voltage stabilization: ≤0.05% +10mV
• Current stabilization: ≤0.1% +10mA
• Load stabilization: CV≤0.1% +1mV / CC≤0.1% +10mA
• Ripples and noises: CV≤10mV(RMS) / CC≤20mA(RMS)
• Working Temperature: -10°C ~ 40°C (14°F~104°F) Relative Humidity: <80%
• Storage Conditions: -20°C ~ 80°C (-4°F~176°F) Relative humidity: <80%
• Body Dimension(LxWxH): 10 1/4" x 5" x 5 7/8" (26x12.6x14.8cm)

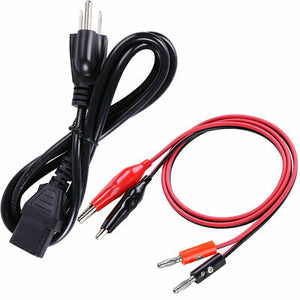

Package Contents:

• 1x DC Power Supply
• 1x Power Cord
• 1x Cable
• 1x Manual

Notices:

• AC Input must be 110V.
• Ventilation: Radiator at the rear of the equipment should Not be Blocked out;
• PS Series with temperature control, when the machine temperature ≥ 45°C, the fans will automatically rotate;
• Please don't use it in the environmental temperature exceeds 45°C.
