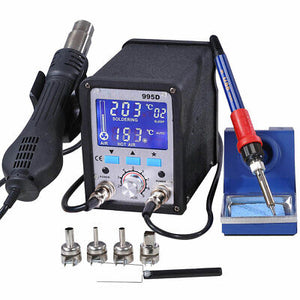

2in1 Rework Soldering Iron Station SMD Digital 995D Nozzles ESD PLCC BGA

Features:

• SAMSUNG microcomputer control for quick warmup
• ESD design of soldering iron to protect sensitive components
• Adjust the airflow and temperature via buttons and rotation knob easily
• Automatically stop rotation when the temperature is less than 70°C
• Handle with sensor switch features access operating mode when picks up or standby mode when lays down
• CE approved

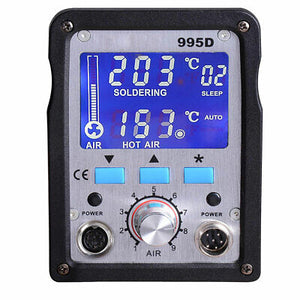

• Blue backlight LCD dynamical display to show precision temperature
• Celsius/Fahrenheit temperature display conversion function
• Temperature correction for appropriately calibration temperature of air gun and soldering iron(-50°C to + 50°C)
• Iron sleep function of soldering iron in standby mode for avoiding the iron tip oxidation at high temperature
• Auto and manual startup function of airflow temperature for more personality and convenience
• Automatic cut-off heater function will effectively prolong the heater's life
• Output power: 750W, Voltage: 110V/AC
• Soldering station unit dimension: 4"L x 6"D x 5 1/2"H
• Suitable for SOIC, CHIP, QFP, PLCC, BGA and temperature-sensitive components
• Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering


Specifications:

• Hot Air Gun
• Power: 650W
• Fan: Brushless fan gentle wind
• Resistant: < 2?
• Airflow: 120L/min(max.)
• Handpiece Size: < 23mm
• Noise: <45dB
• Temp. Stability: ±1°C
• Temp. Control: 100~480°C
• Soldering Hot Iron
• Power: 80W
• Iron: ESM design
• Resistant: <2?
• Temp. Stability: ±1°C
• Temp. Control: 200~480°C

Package Content:

• 1x 2in1 Soldering Station Unit
• 1x Hot Air Gun
• 1x Hot Iron

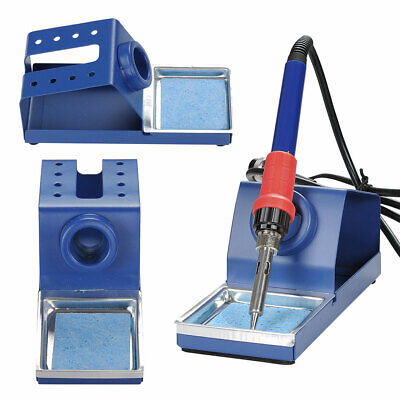

• 1x Stand
• 1x Holder
• 1x IC Extractor
• 1x Sponge
• 4x Nozzles?Ø5mm,Ø8mm,Ø10mm,Square:Ø13mm)
• 1x Manual

*Please read the user's manual before use.
