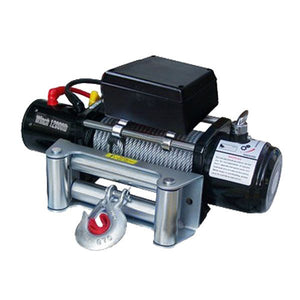

Wireless Remote 12000 Industury Electric Winch 12 Volt

Features:

• 12,000LB( single line rated pull )Electric Winch
• Efficient Three-stage Planetary Gear Train helps to offer powerful horsepower
• 4-Way Roller Fairlead to guide the rope onto the drum evenly

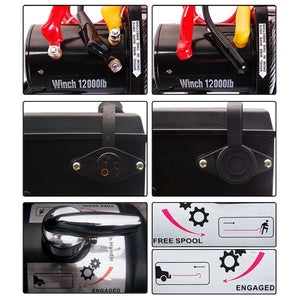

• Free spooling clutch allows the wire rope to be pulled out without using electric power
• Power IN and OUT through a remote switch with 12ft leads or Wireless Remote Control
• Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.
• Extra protective casings for connectors, insuring safety and low wear-out.
• Custom gaskets seal up critical inner components from water and debris infiltration

Specification:

Single line rated pull	12000LBS(5443kgs)
Motor	6.6hp/4.8kw (12V), Series Wound
Control	Remote switch,12ft lead
Gear train	3 Stage Planetary
Gear reduction ratio	195.8:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size(Diam. x L)	2.52" x 8.82"
Cable(Diam. x L)	0.36" x92'
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery Recommended	650CCA minimum for winching
Battery Leads	2 gauge,72"
Finish	Dark gray powder coat
Overall Dimensions(L x W x H)	21.1"x6.3"x9.5"
Mounting Bolt Pattern(L x W)	10" x 4.5"
Weight	83.6lbs

Line speed and motor current (first layer):

Line Pull (lbs)	Line Speed (FPM)	Current (A)
0	33.3	85
4000	16.8	158
6000	12.8	231
8000	10.1	302
10000	8.8	371
12000	7.6	450

Line pull and Cable capacity:

layer of cable	Rated Line Pull (lbs)	Total Rope on Drum (ft)
1	12000	17
2	9210	41
3	8030	71
4	6894	82

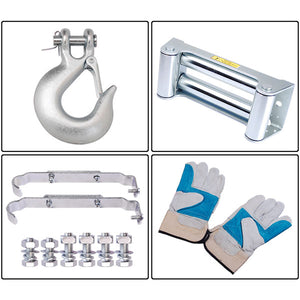

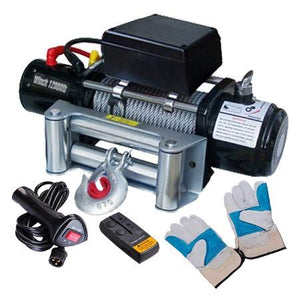

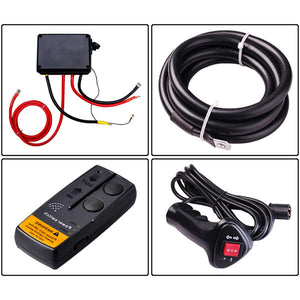

Package Included:

• 1 x 12000lb Winch
• 1 x Solenoid Box Assembly
• 1 x Roller Fairlead
• 1 x Remote Switch with 12ft Cable
• 1 x Wireless Remote Control
• 1 x Hook
• 1 x Safety Pull Strap
• 1 x 72" Battery Leads
• Some Fixing Accessories
• 1 x Pair of Safety Gloves
• 1 x Users Manual
• Mounting plate is not included

Please kindly notice that we do not include mounting plate in the package, you need a suitable winch mounting plate to hold your winch and fairlead before installing the winch onto your vehicle. (The type of mounting plate should refer to if your vehicle equipped with a fender guard or not.)

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is over heating, please stop for a while to cool down.
4) 1 Year Manufacturer's Warranty. (We will send the necessary accessories for replacement. But the warranty doesn't cover user damage.)
