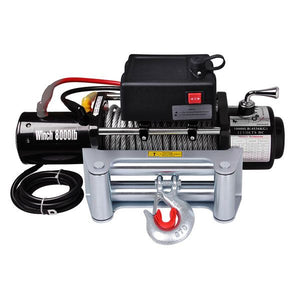

Wireless Remote 8000 Recovery Electric Winch 12 Volt

This is an Electric Winch which is packed with the features you just want: Efficient Three-stage Planetary Gear Train, Automatic Braking Action, Handheld Corded Remote Switch, Free Spooling Clutch, Power IN and OUT, and a 4-Way Roller Fairlead etc. Powerful HorsePower, Extra Fast Speed, and Compact Design make this winch a must-have for recovery applications.

Features:

• 8000LB( single line rated pull )Electric Winch
• Efficient Three-stage Planetary Gear Train helps to offer powerful horsepower
• 4-Way Roller Fairlead to guide the rope onto the drum evenly
• Free spooling clutch allows the wire rope to be pulled out without using electric power
• Power IN and OUT through a remote switch with 12ft leads or Wireless Remote Control
• Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.

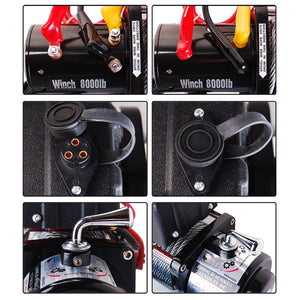

• Extra protective casings for connectors, insuring safety and low wear-out.
• Custom gaskets seal up critical inner components from water and debris infiltration

Specification:

Single line rated pull	8000LBS(3629kgs)
Motor	5.5hp/4.0kw 12V, Series Wound
Control	Remote switch,12ft lead
Gear train	3 Stage Planetary
Gear reduction ratio	148.2:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size( x L)	2.52" x 8.79"
Cable( x L)	0.32" x 92'
Fairlead	4-Way Roller Fairlead
Remote Control (Wired & Wireless)	Included
Battery Recommended	650CCA minimum for winching
Battery Leads	2 gauge,72"
Finish	Dark gray powder coat
Overall Dimensions(L x W x H)	21.1"x6.3"x8.6"
Mounting Bolt Pattern(L x W)	10" x 4.5"
Net Weight	77lbs

Line speed and motor current (first layer):

Line pull and Cable capacity:

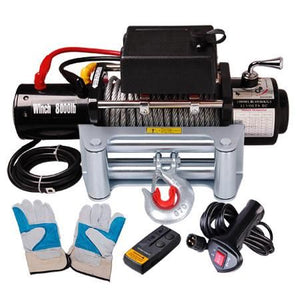

Package Included:

• 1 x 8000lb Winch

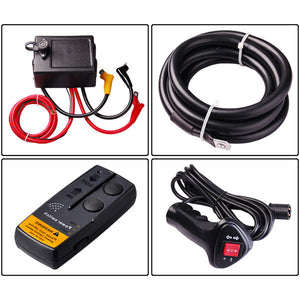

• 1 x Solenoid Box Assembly

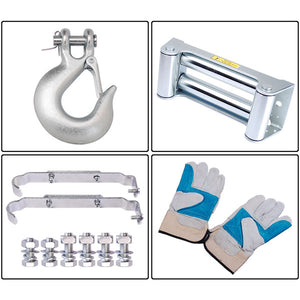

• 1 x Roller Fairlead
• 1 x Remote Switch with 12ft Leads
• 1 x Wireless Remote Control
• 1 x Hook
• 1 x Safety Pull Strap
• 1 x 72" Battery Leads
• 1 x Pair of Safety Gloves As Free Gift
• 1 x Users Manual
• Some Fixing Accessories
• Mounting plate is not included

Please kindly notice that we do not include mounting plate in the package, you need a suitable winch mounting plate to hold your winch and fairlead before installing the winch onto your vehicle. (The type of mounting plate should refer to if your vehicle equipped with a fender guard or not.)

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is over heating, please stop for a while to cool down.
4) 1 Year Manufacturer's Warranty (We will send the necessary accessories for replacement. But the warranty doesn't cover user damage.)
