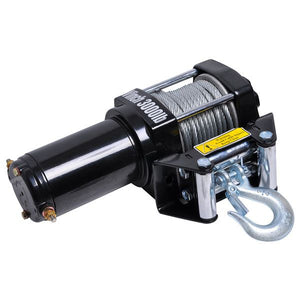

Car Truck Corded Remote 3000 ATV Winch 12 Volt

A recovery winch can get you back to off-road fun when your vehicle gets stuck or just can't make it up a really steep grade. For serious off-road adventurers, having a winch on your truck or SUV is a good idea. Here we offer you an electric winch which is packed with the features you just want: A 4-Way Roller Fairlead, Automatic Braking Action, Handheld Corded Remote Switch and Free Spooling Clutch etc. Powerful HorsePower, Extra Fast Speed, and Compact Design make this winch a must-have for recovery applications.

Features:

• 3000 LB ( Single Line Rated Pull ) Electric Winch
• 4-Way Roller Fairlead to Guide the Rope onto the Drum Evenly
• Free Spooling Clutch Allows the Wire Rope to be Pulled Out without Using Electric Power.
• Power IN and OUT through a Remote Switch with 9.5ft Leads
• Automatic Braking in the Drum will Lock the Wire Rope and Stop Pulling When You Release Button on the Switch.
• Custom Gaskets Seal Up Critical Inner Components from Water and Debris Infiltration.
• Rubber Line Stopper Holds Your Hook Tightly Against Your Fairlead, Eliminates Trail Rattle While you're Riding
• A Free Pair of Gloves For More Safety, Incase the Cable Created Small Hooks That Rend Flesh

Specification:

Single Line Rated Pull:	3000 lbs (1,361kgs), Load Without Wheels. Rolling or Marine Load Would be Much More.
Motor:	1.34hp/1.0kw(12V), Permanent Magnet
Gear Reduction Ratio:	153:1
Control:	Remote Switch, 9.5ft Lead
Wire Rope Size(Diam.x L):	0.2" x 34.5'
Drum Size(Diam.x L):	1.24" x 2.88"
Overall Dimensions(L x W x H):	12" x 4.1" x 4.4"
Mounting Bolt Pattern:	3.13"
Net Weight:	18 lbs.

Line speed and motor current (first layer):

Line Pull (lbs)	Line Speed (FPM)	Current (A)
0	9.5	10
1000	6.6	25
2000	4.3	60
3000	2.3	150

Line pull and Cable capacity:

layer of cable	Rated Line Pull (lbs)	Total Rope on Drum (ft)
1	3000	5.6
2	2370	12.1
3	1960	19.7
4	1670	27.9
5	1460	37.1
6	1290	46.9

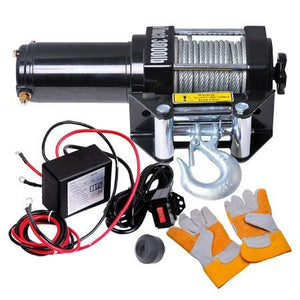

Package Included:

• 1 x 3000lb Winch

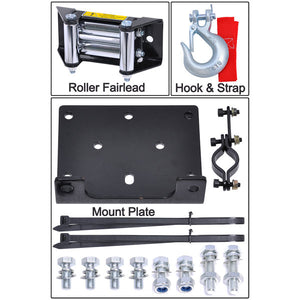

• 1 x Roller Fairlead
• 1 x Fairlead Mount Plate

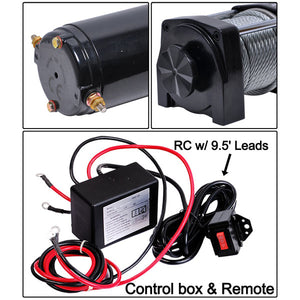

• 1 x Control Box with Remote Mini-Rocker Thumbswitch
• 1 x Steel Hook and Pull Strap

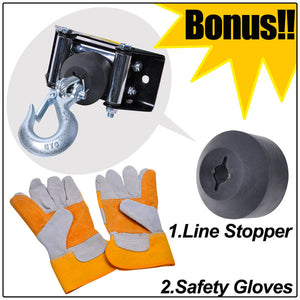

• 1 x Rubber Line Stopper & Pair of Winch Safety Gloves as Free Gifts
• Some Fixing Accessories
• 1 x Users Manual

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is over heating, please stop for a while to cool down.
4) 1 Year Manufacturer's Warranty (We will send the necessary accessories for replacement. But the warranty doesn't cover user damage.)

Tips: How much pull is enough for your vehicle?
The rule-of-thumb minimum is to take your GVW (that's Gross Vehicle Weight, not curb weight) and multiply it by 1.5.
