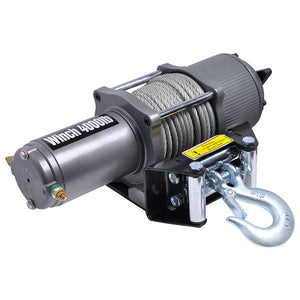

Car Truck Corded Remote 4000 Electric Winch 12 Volt

A recovery winch can get you back to off-road fun when your vehicle gets stuck or just can't make it up a really steep grade. For serious off-road adventurers, having a winch on your truck or SUV is a good idea. Here we offer you an electric winch which is packed with the features you just want: Efficient Three-stage Planetary Gear Train, A 4-Way Roller Fairlead, Automatic Braking Action, Handheld Corded Remote Switch and Free Spooling Clutch etc. Powerful HorsePower, Extra Fast Speed, and Compact Design make this winch a must-have for recovery applications.

Features:

• 4000 LB ( Single Line Rated Pull ) Electric Winch
• Efficient Three-stage Planetary Gear Train Helps to Offer Powerful Horsepower
• 4-Way Roller Fairlead to Guide the Rope onto the Drum Evenly
• Free Spooling Clutch Allows the Wire Rope to be Pulled Out without Using Electric Power.
• Power IN and OUT through a Remote Switch with 9.5ft Leads
• Automatic Braking in the Drum will Lock the Wire Rope and Stop Pulling When You Release Button on the Switch.
• Custom Gaskets Seal Up Critical Inner Components from Water and Debris Infiltration.

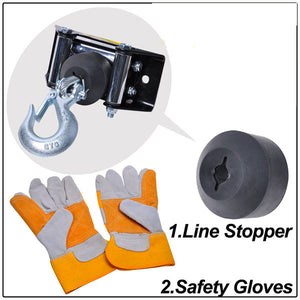

• Rubber Line Stopper Holds Your Hook Tightly Against Your Fairlead, Eliminates Trail Rattle While you're Riding
• A Free Pair of Gloves For More Safety, Incase the Cable Created Small Hooks That Rend Flesh

Specification:

Single Line Rated Pull:	4000 lbs (1,818kgs), Load Without Wheels. Rolling or Marine Load Would be Much More.
Motor:	1.24hp/0.9kw(12V), Permanent Magnet
Gear Reduction Ratio:	128.2:1
Control:	Remote Switch, 9.5ft Lead
Wire Rope Size(Diam.x L):	0.24" x 44.3'
Drum Size(Diam.x L):	1.77" x 3.23"
Overall Dimensions(L x W x H):	13.9" x 4.6" x 4.92"
Mounting Bolt Pattern:	3.13"
Net Weight:	28.6 lbs.

Line speed and motor current (first layer):

Line Pull (lbs)	Line Speed (FPM)	Current (A)
0	23.7	26
500	23.1	35
1000	20.6	70
1500	16.7	98
2000	13.4	107
2500	10.7	129
3000	8.5	138
4000	6.79	205

Line pull and Cable capacity:

layer of cable	Rated Line Pull (lbs)
1	4000
2	2817
3	2573
4	2363
5	1975

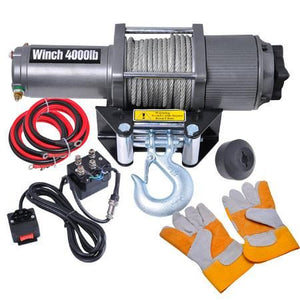

Package Included:

• 1 x 4000 lb Winch

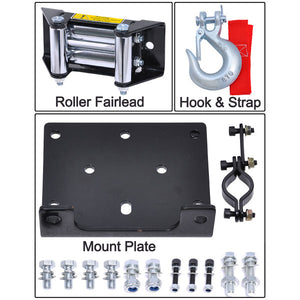

• 1 x Roller Fairlead
• 1 x Fairlead Mount Plate

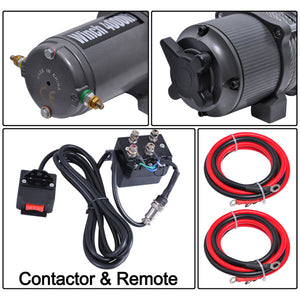

• 1 x Contactor
• 1 x Remote Mini-Rocker Thumbswitch
• 1 x Steel Hook and Pull Strap
• 1 x Rubber Line Stopper & Pair of Winch Safety Gloves as Free Gifts
• Some Fixing Accessories
• 1 x Users Manual

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is over heating, please stop for a while to cool down.
4) 1 Year Manufacturer's Warranty (We will send the necessary accessories for replacement. But the warranty doesn't cover user damage.)

Tips: How much pull is enough for your vehicle?
The rule-of-thumb minimum is to take your GVW (that's Gross Vehicle Weight, not curb weight) and multiply it by 1.5.
